CM-1060

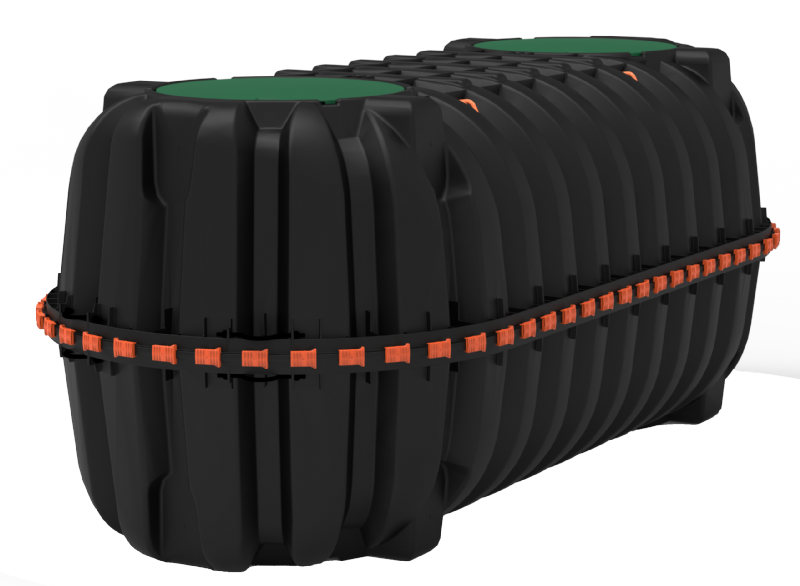

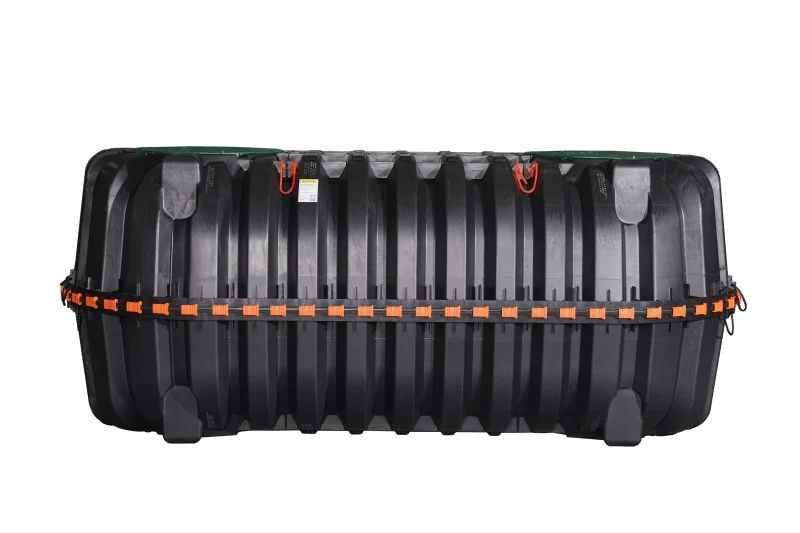

The Infiltrator CM-1060 is a lightweight, strong and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator compression molded tanks provide a revolutionary improvement in thermoplastic septic tank design, offering exceptional long-term strength and watertightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

Specifications:
Size
61.7"W x 134"L x 54.5"H
(1567 mm x 3409 mm x 1384 mm)

Two Access Ports
Each 24" (610 mm)

Weight
331 lbs (151 kg)

Total Capacity
1309 gal (4956 L)

Working Capacity
1111 gal (4207 L)

Burial Depth
Minimum 6" (152 mm)
Maximum 48" (1219 mm)

Benefits:
Strong compression molded polypropylene construction
Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling

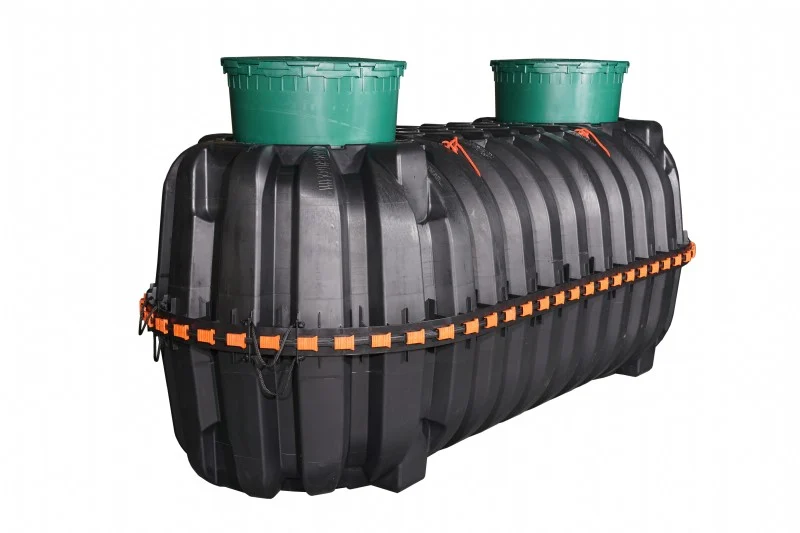

Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
Structurally reinforced access ports eliminate distortion during installation and pump-outs

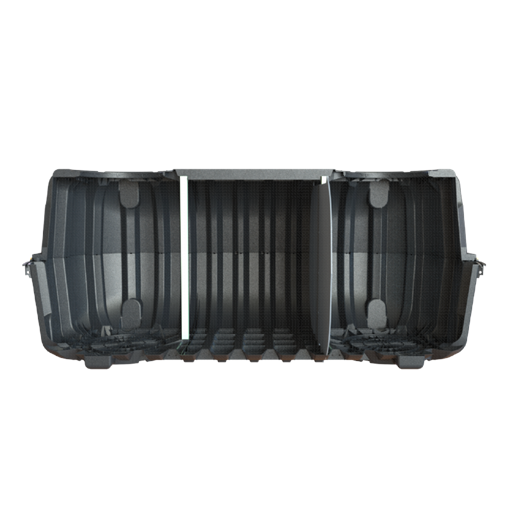

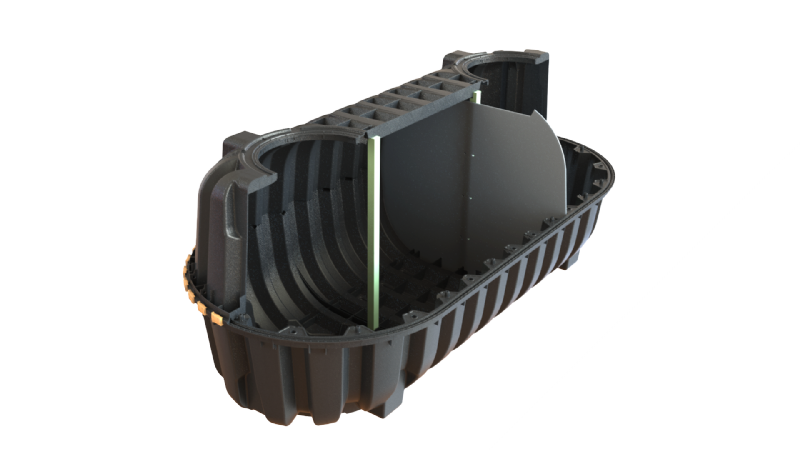

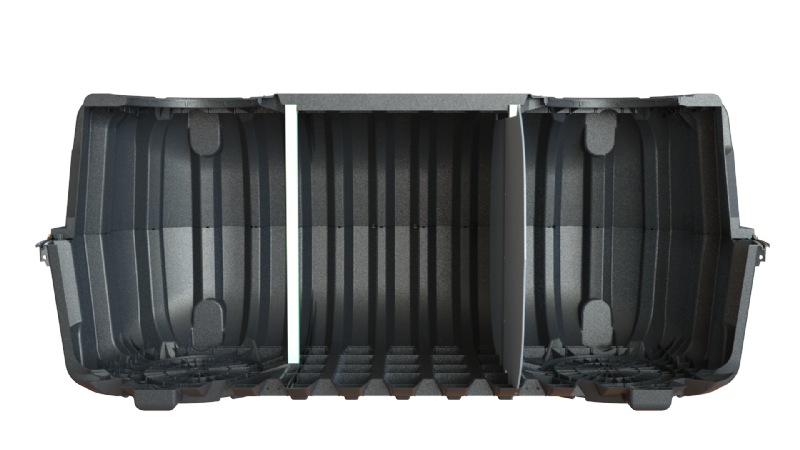

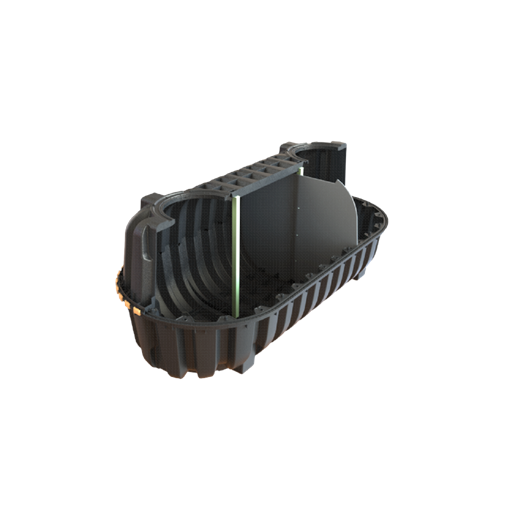

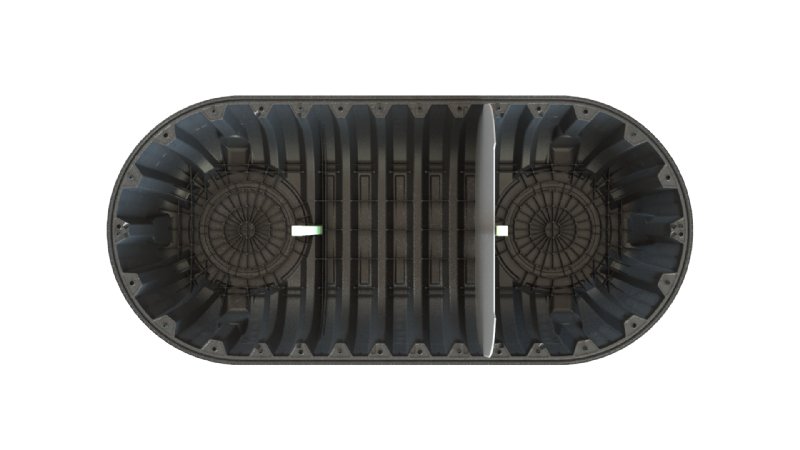

Reinforced structural ribbing and fiberglass bulkheads offer additional strength
Can be installed with 6” to 48” (152 to 1,219 mm) of cover
Can be pumped dry during pump-outs
Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
No special water filling requirements are necessary
The tank may be backfilled with suitable native soil. See installation instructions for guidance.
