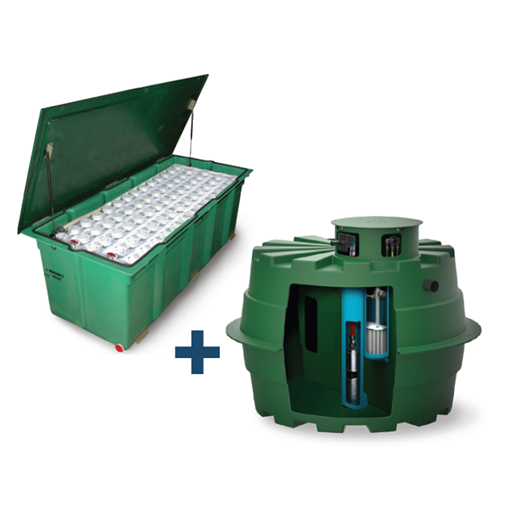

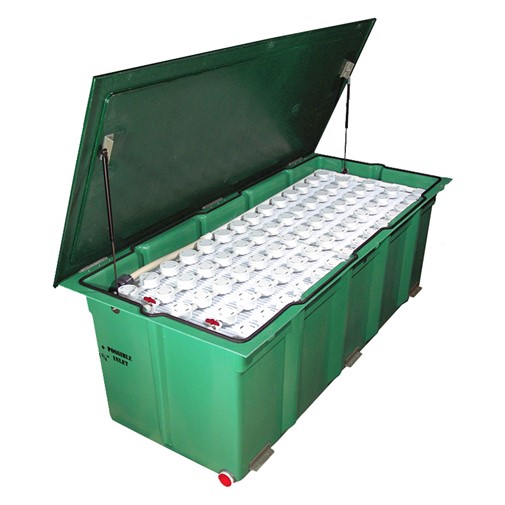

AdvanTex® AX20 Package

Designed for standard and larger homes, the AdvanTex® AX20 Package will treat up to 2,000 L/day. Needing very little space to install, it also has low maintenance requirements and pumping costs, which make this the preferred system for most homeowners.

For Advanced Nitrogen Reduction:
Please specify the AX20 Mode 3 System
To view drawings, specification docs, and testing results please log in to our library

Rating

Up to 2000L per day

Energy Use

$6-to-$8 Per month

Treatment Quality

Typical effluent quality:

BOD5 <15mg/L average and <20mg/L peak

TSS: <15mg/L average and <30mg/L peak

Dimensions

(With pod sitting on top of tank)

Height - 2730mm

Width - 2600mm

Dry Weight - 500kg

Other Systems

AdvanTex® AX15

Designed to treat up to 1,000 litres a day, the AdvanTex® AX15 is a completely pre-packaged "plug and play" system suitable for small homes. It is compact and lightweight, and ideal for holiday homes and sites with limited space.

AdvanTex® AX20-RT

For homes that already have an existing septic tank, the AdvanTex® AX20-RT is a retrofit secondary treatment unit which is lightweight, robust, and high performing. Rated up to 2000L per day.

AdvanTex® AX40

For extra large residential dwellings, high end homes and commercial sites we can design an AdvanTex® AX40 system to suit your needs. The AdvanTex® AX40 is capable of treating up to 4000L per day and we can design and build the system to suit your effluent quality requirements.

AdvanTex® AX60

A large treatment system that is suitable for luxury homes, multiple dwellings or commercial sites. The AdvanTex® AX60 Treatment System is rated to treat wastewater flows up to 6,000 L/day. We will design each AdvanTex® AX60 system to suit the specific requirements of your site.

AdvanTex® AX100

Designed for commercial applications and multiple dwelling or community projects that require an advanced secondary treatment system. AdvanTex® AX100 Treatment Systems are an excellent choice for decentralised settings, including new installations and upgrades.

AdvanTex® AX-Mobile

Based on the AdvanTex® AX-Max technology, the AdvanTex® AX-Mobile Treatment Systems are a free standing unit that are a great option for temporary projects or remote sites, including work camps, forward operating bases, disaster relief and temporary flow diversions.

AdvanTex® AX-Max

AdvanTex® AX-Max Treatment Systems are intended for large-flow and remote sites with space constraints and community applications that require an advanced secondary treatment system.

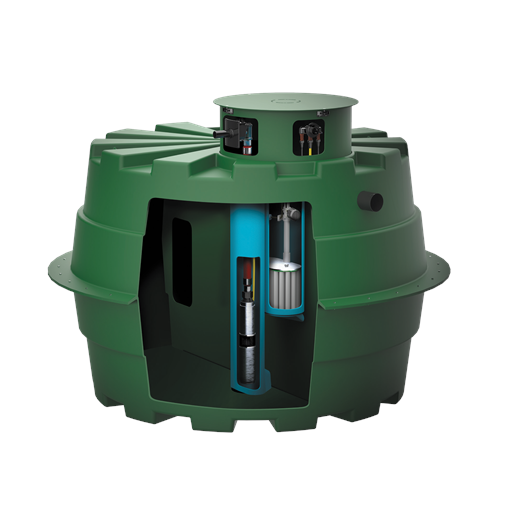

Prelos™ Community Systems (STEP)

Prelos™ stands for 'Pressurised Liquid Only Sewer' also known as STEP systems. Prelos™ systems use on-lot pumped septic tanks to deliver filtered household wastewater to a private wastewater treatment system or council sewer.

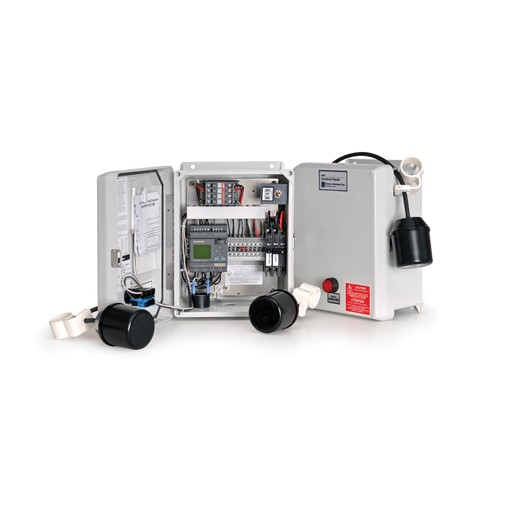

Orenco® Controls

Whether it is a standard residential system or a large multi stage commercial treatment plant, control panels made by Orenco® Systems will give you piece of mind.

Orenco® Biotube® Effluent Filters & Accessories

One of the most important parts of any wastewater treatment process is the effluent filter as well as having a reliable set of float controls for your pumping system.

Effluent Pumps by Orenco®

Orenco® Systems produce a range of high quality submersible effluent pumps for pumping effluent within an AdvanTex treatment system or commercial plant.
