Jack’s Point Queenstown

Jack’s Point Queenstown

Iconic Queenstown subdivision Jack’s Point has resource consent for 1400 lots, although 900 homes were proposed initially. The development is handily located to a municipal wastewater treatment plant, but a decentralised wastewater management system was chosen for capacity and cost benefits.

The Otago Regional Council adopted an effects-based approach to land treatment, requiring levels of post-development nutrient load to be less than levels measured pre-development. The authority granted a resource consent to discharge up to 1,374,000 litres a day to land.

Innoflow demonstrated that their technology would meet strict nitrogen level requirements, which was backed up by their OSET trial data. Additionally, the liquid only sewer system meant the cost of primary treatment was deferred to the homeowners, risk of stormwater infiltration was significantly reduced, and maintenance costs would be much lower than a comparable gravity sewer.

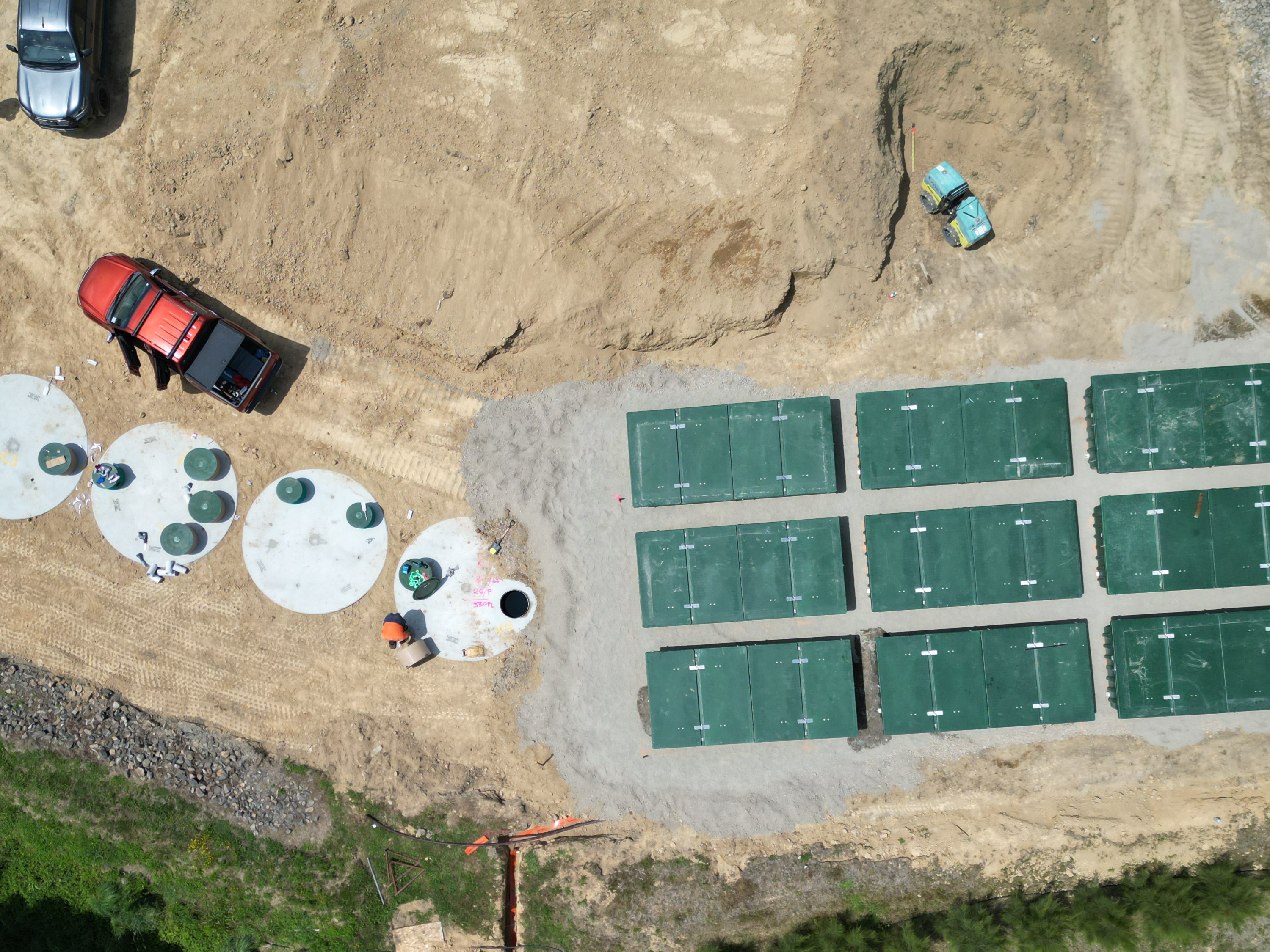

The installed system comprises small diameter effluent sewer for wastewater collection, on-lot Step/Prelos tanks and the AdvanTex® Recirculating Textile Packed Bed Reactor for the treatment system. Innoflow also supplied and installed the land treatment system by way of subsurface drip irrigation.


System Performance

The wastewater treatment system produces high quality effluent with the following outputs:

  • Biochemical Oxygen Demand (cBOD5) levels averaging 15mg/L
  • Total Suspended Solids (TSS) levels averaging 20mg/L
  • Total Nitrogen (TN) levels averaging 15mg/L (New Limit)
  • Total Phosphorus (TP) levels averaging 12mg/L
  • Escherichia-coli (E.coli) levels averaging 10,000 cfu/100mLs

Treated effluent is disposed of sustainably, and the low-profile, below-ground wastewater treatment plant design is barely noticeable on the landscape.

The whole of life cost for the entire system, along with the ability to easily expand the plant in the future as the development grows, meant the Innoflow solution made economic sense to the developer, as well as environmental sense.

Put your subdivision on a more sustainable pathway with Innoflow’s decentralised wastewater solution.
