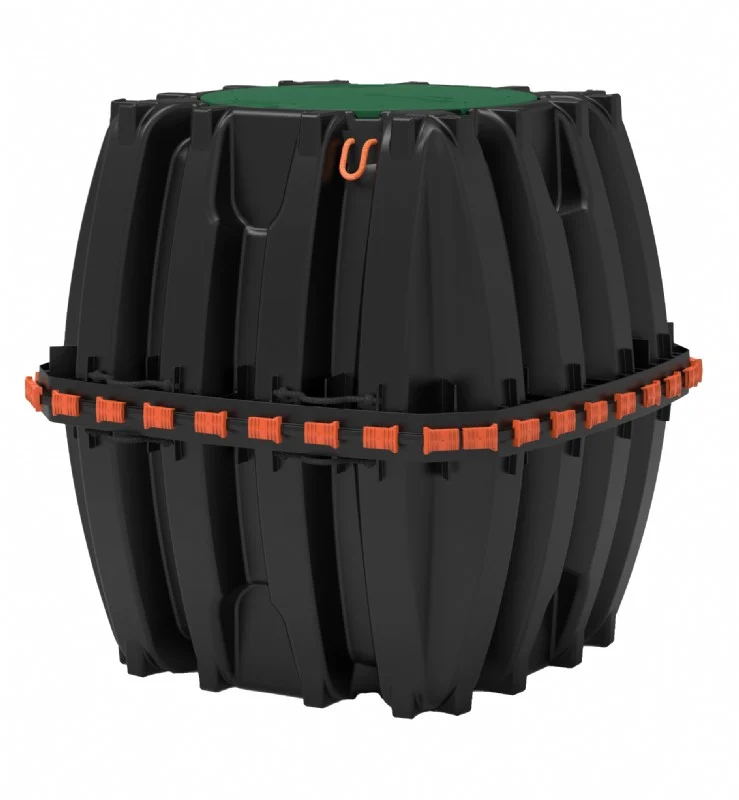

IM-300
The Infiltrator IM-300 is a lightweight, strong and durable pump tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator injection molded tanks provide a revolutionary improvement in plastic tank design, offering exceptional long-term strength and watertightness.
Specifications:
Size
50.9”W x 50.9"L x 50.5"H
(1293 mm x 1293 mm x 1283 mm)
Weight
110 lbs ( 50 kg)
Total Capacity
322 gal (1219 L)
Working Capacity
278 gal (1052 L)
Burial Depth
Minimum 6" (152 mm)
Maximum 52" (1321 mm)
Benefits:
Strong injection molded polypropylene construction
Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
Structurally reinforced access ports eliminate distortion during installation and pump-out
Reinforced structural ribbing and fiberglass bulkheads offer additional strength
Can be installed with 6” to 52” (152 to 1,321 mm) of cover
Can be pumped dry during pump-outs
Suitable for use as a pump tank, or rainwater (non-potable) tank
No special water filling requirements are necessary
The tank may be backfilled with suitable native soil.
