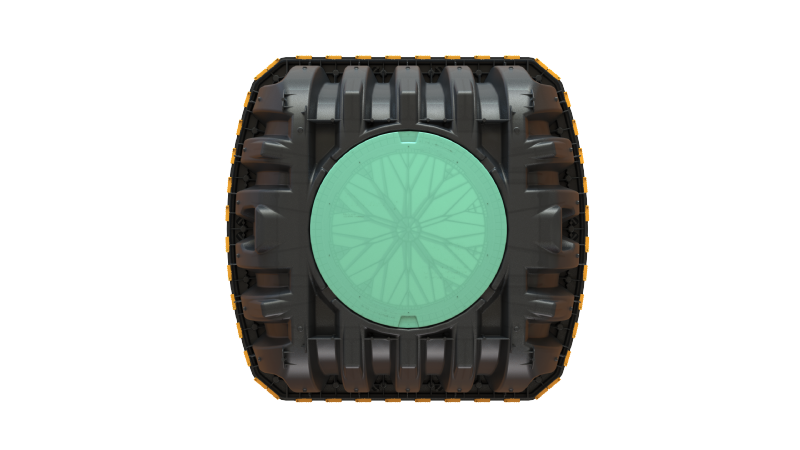

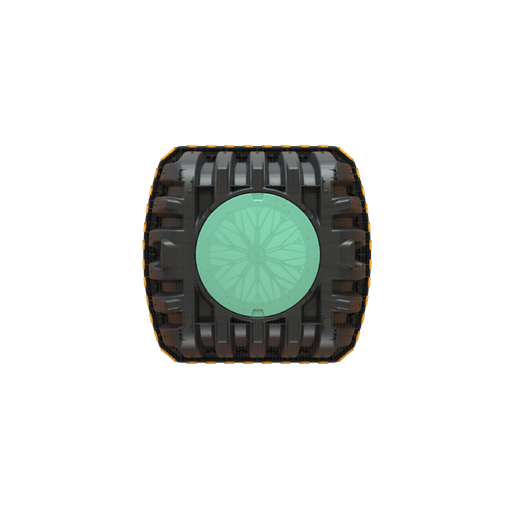

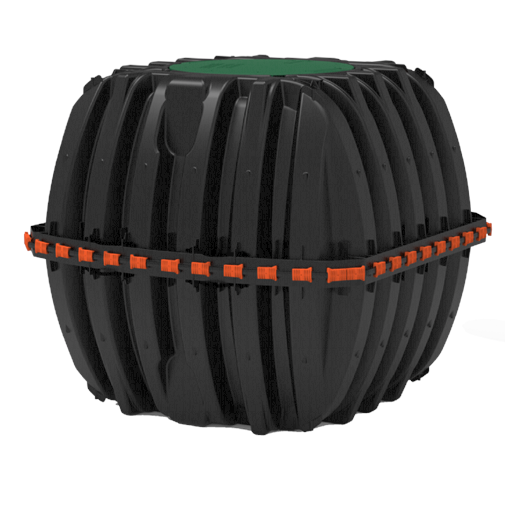

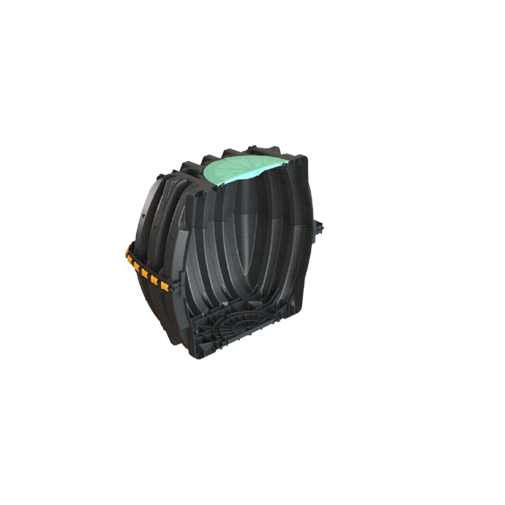

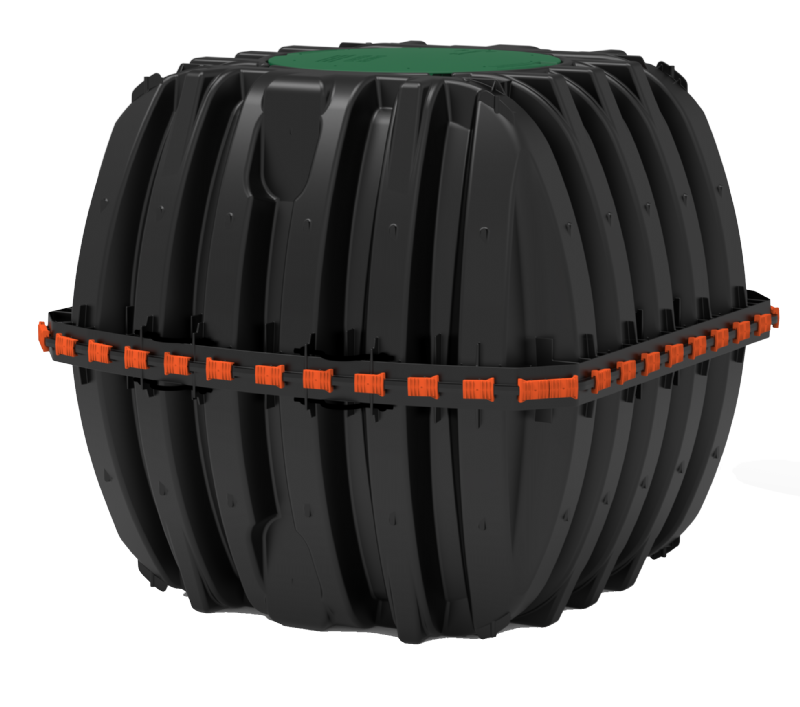

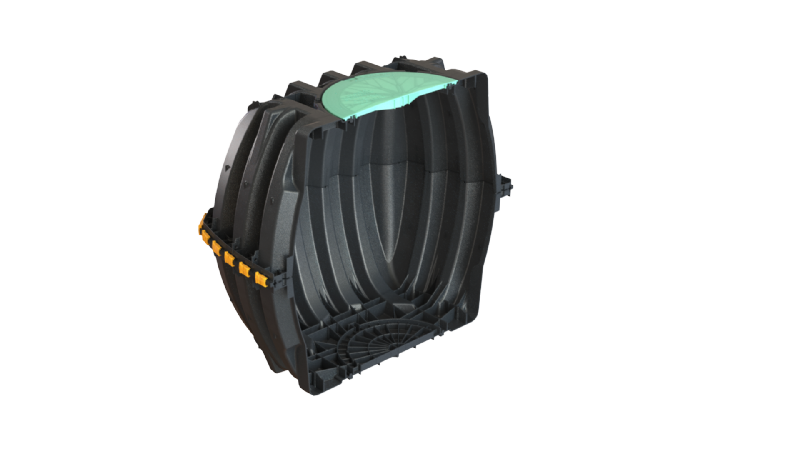

IM-540

The Infiltrator IM-540 is a lightweight strong and durable septic/pump tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator injection molded tanks provide a revolutionary improvement in plastic tank design, offering long-term exceptional strength and watertightness.

Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.

All IM-540 tanks are fully assembled and available through our network of certified Infiltrator distributors.

Specifications:
Size
61.7"W x 64.9"L x 54.6"H
(1567 mm x 1648 mm x 1387 mm)

Access Port
24" (610 mm)

Weight
169 lbs (77 kg)

Total Capacity
552 gal (2090 L)

Burial Depth
Minimum 6" (152 mm)
Maximum 48" (1219 mm)

Benefits:

Strong injection molded polypropylene construction

Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling

Structurally reinforced access ports eliminate distortion during installation and pump-outs

Reinforced structural ribbing offers additional strength

Can be installed with 6" to 48" of cover

Can be pumped dry during pump-outs

Suitable for use as a pump tank or rainwater (non-potable) tank

No special installation, backfill or water filling procedures are required

No special water filling requirements are necessary

The tank may be backfilled with suitable native soil. See installation instructions for guidance.

Download the cutsheet

Download the in-series cutsheet
